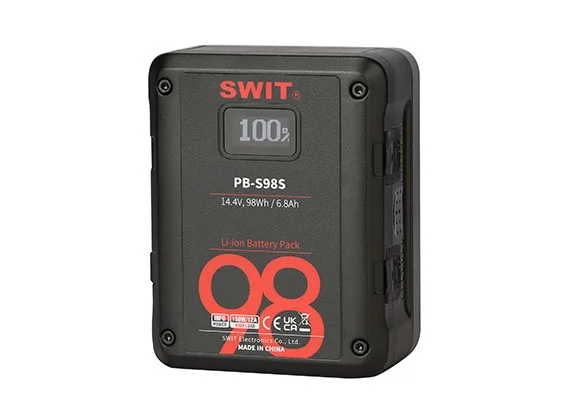

PB-S98S 98Wh Multi-sockets Square Digital Battery Pack
PB-S98S 98Wh Multi-sockets Square Digital Battery Pack
PB-S98S 98Wh Multi-sockets Square Digital Battery Pack
PB-S98S 98Wh Multi-sockets Square Digital Battery Pack
PB-S98S 98Wh Multi-sockets Square Digital Battery Pack
PB-S98S 98Wh Multi-sockets Square Digital Battery Pack
PB-S98S 98Wh Multi-sockets Square Digital Battery Pack
PB-S98S 98Wh Multi-sockets Square Digital Battery Pack

PB-S98S 98Wh Multi-sockets Square Digital Battery Pack

Square shape design for Cine-cameras
Price
$265.00
$238.00
Save  $27.00
Quantity
Sustainably made
Secure payments
SKU: PB-S98S

› Square shape design for Cine-cameras

› Max 150W, 12A load

› 2× D-tap output sockets (120W/10A in total)

› 1× USB 5V/2A power output sockets

› OLED display accurate remaining run time

› Display power info in both SONY & RED

› Multiple circuit protections

Square shape design for Cine-cameras

PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.

98Wh Capacity, 150W/12A load

Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.8Ah high capacity.
Can run approx 3 hours for normal cameras.
Provides at least 150W/12A high load even at 1% capacity.

2× D-tap, 1× USB

PB-S98S provides 2x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.

Digital Power Info

OLED display accurate remaining run time

The build-in OLED can displays remaining power percentage, remaining working time, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.

Battery Protection Display

When any over load, over charging, short circuit, high/low temperature detected, the battery will protect itself and display protection information. You can take steps to re-active battery, to ensure the best battery condition and prolong battery life.

Battery plate

V-mount

Nominal voltage

14.4V

Capacity

98Wh,6.8Ah

Max output

In total: 150W

Electrodes: 150W, 12A

USB:10W, 5V/2A
D-tap: 120W / 10A

Dimension

121×95×59mm

Charging Temperature

0-40°C

Discharging Temperature

-20°C-50°C(Capacity and Max Load may decrease when operating below 0°)

Net weight

0.809kg

Max charging current

3A

D-TAP socket number

2

USB socket number

1

Monitor

We provide 2 years conditional warranty for monitors (1 year for LCD panel).



The following damages/issues are not covered under warranty:

(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) The number of bright or dark spots of the LCD panel shall conform to the standard regulated by SWIT. (Check User Manual for details)
(3) Any damage caused by powering the monitor with third-party power adaptors.
(4) Any damage of LCD panel caused by external forces.
(5) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(6) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.

Video Transmitter

We provide 1 year conditional warranty for Wireless video and converters.

The following damages/issues are not covered under warranty:

(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) The attenuation of signal quality resulting from being used in any special environments.
(3) Any damage caused by powering the product with third-party power adaptors.
(4) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(5) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.

Battery

We provide 2 years conditional warranty for V-mount/Gold Mount batteries,

and 1 year conditional warranty for DV and NP-1 batteries.

The following damages/issues are not covered under warranty:

(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Battery performance declines, cannot be charged, or cannot be fully charged that caused by using third-party chargers.
(3) Battery capacity naturally decreased after a certain cycle times of charging and discharging.
(4) The capacity loss caused by over 6-month’s storage, and not charging the battery to re-active it during the period.
(5) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(6) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.

Charger & Adaptor

We provide 2 years conditional warranty for battery chargers and power adaptors

The following damages/issues are not covered under warranty:

(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Damage caused by input voltage beyond the limited range of AC 100V-240V.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.

Light

We provide 1 year conditional warrant for light products.

The following damages/issues are not covered under warranty:

(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual's instructions, or disassemble, repair without authorization of SWIT.

(2) Any damage caused by powering the product with third-party power adaptors.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
