› Portable 3G/HD/SD-SDI 1 to 4 distributor
› 1 SDI input, 4 SDI output
› SDI re-clocking and amplifier
› Power/input/output status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing

Portable Mini Converter

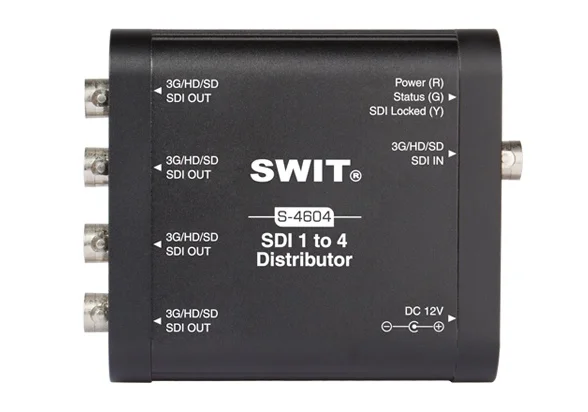

SDI 1 to 4 distributor
S-4604 is a mini converter for distributing 1 SDI input to 4 SDI output, supports up to 3Gb/s SDI, with all embedded information, widely used on broadcast projects.

Input and Output
S-4604 offers:
1× 3G/HD/SD-SDI input
4× 3G/HD/SD-SDI output (Reclocked)

SDI Amplifier
The S-4604 features low SDI jitter and SDI re-clocking, so that you can use several S-4604 to prolong the SDI transmission distance.

Status Indicators
Power / Input / Output
S-4604 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.

Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy Duty Housing
The S-4604 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.

Installation
S-4604 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and bind- ing the BNC cables.
