98Wh Bi-voltage B-mount Battery Pack
Price
$579.00
$579.00
Save  $0.00
Quantity
Sustainably made
Secure payments
SKU: BIVO-160

›  14.4V/28.8V Bi-voltage B-mount

›  98Wh fly-friendly capacity

›  150W constant high load

›  33.6V 100W fast charging

›  D-tap 11-16.8V output ×2

›  LED power & voltage indicators

›  Built-in LED torch

›  Strong 1.2m drop off proof

›  Multiple circuit protections

14.4V/28.8V Bi-Voltage
B-mount Battery

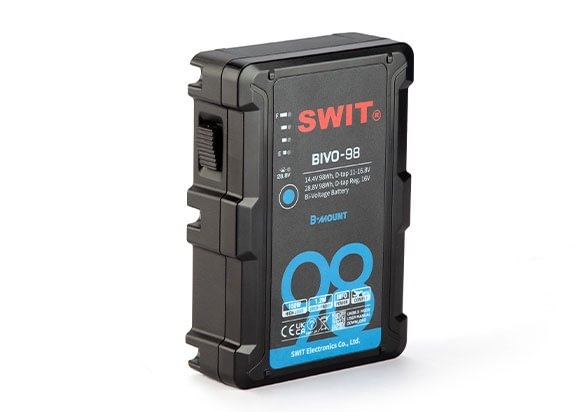

BIVO-98 is a 14.4V(11-16.8V) and 28.8V (22-33.6V) Bi-voltage B-mount battery, for ARRI cameras and various compatible with regular voltage cameras and cinegears. The battery will recognize the ID pin resistor value of the B-mount plate, and then output 14.4V or 28.8V, without any misuse risks.

98Wh Fly Friendly Capacity

BIVO-98 battery is only 38mm thickness and 668g light weight for handheld shooting. It's 98Wh capacity, run at least 1 hour on ARRI ALEXA 35 camera, and not being restricted to board airplane.
The battery provides at least 150W constant power load for cine cameras and devices.

2x D-tap Power Output

BIVO-98 provides with 2x D-tap power sockets.
When the battery works at 14.4V voltage,
the D-tap outputs 11-16.8V;
When the battery works at 28.8V voltage,
the D-tap output regulated 16V,
to power all kinds of camera-top devices.

BIVO Series Family

The BIVO series Bi-voltage B-mount battery famaily has 98Wh, 160Wh, 196Wh, 290Wh, the different sizes and capacities, for stablizer handheld light weight or long time power selection.

LED Power/Voltage Indicators

BIVO-98 has 4-level LED power indicators and an independent blue LED to indicate battery voltage. When the battery attached to B-mount plate, the blue LED turned on means the battery outputs 28.8V high voltage, and the blue LED off means the battery is 14.4V regular voltage.

33.6V Fast Charging

You can charge 4x BIVO-98 simultaneously on SWIT PC-P461B B-mount charger, at 33.6V, 50W fast charging. The charger will take approx. 3 hours to fully charge 4x BIVO-98 batteries.

LED Torch

You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find B-mount plate in dark production environment.
Double press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds.

1.2 meters Drop-off Proof

BIVO-98 battery can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.

Voltage

28.8V (21.6-33.6V) & 14.4V (10.8-16.8V)

Capacity

98Wh

Constant load

150W

Charging

33.6V 50W fast charging

Mount Type

B-mount

D-tap ×2

14.4V status: 10.8-16.8V out, 200W load
28.8V status: 16V regulated out, 50W load

Charging Temperature

0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)

Net weight

Approx 668g

Dimensions

144×100×38mm

Monitor

We provide 2 years conditional warranty for monitors (1 year for LCD panel).



The following damages/issues are not covered under warranty:

(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) The number of bright or dark spots of the LCD panel shall conform to the standard regulated by SWIT. (Check User Manual for details)
(3) Any damage caused by powering the monitor with third-party power adaptors.
(4) Any damage of LCD panel caused by external forces.
(5) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(6) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.

Video Transmitter

We provide 1 year conditional warranty for Wireless video and converters.

The following damages/issues are not covered under warranty:

(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) The attenuation of signal quality resulting from being used in any special environments.
(3) Any damage caused by powering the product with third-party power adaptors.
(4) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(5) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.

Battery

We provide 2 years conditional warranty for V-mount/Gold Mount batteries,

and 1 year conditional warranty for DV and NP-1 batteries.

The following damages/issues are not covered under warranty:

(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Battery performance declines, cannot be charged, or cannot be fully charged that caused by using third-party chargers.
(3) Battery capacity naturally decreased after a certain cycle times of charging and discharging.
(4) The capacity loss caused by over 6-month’s storage, and not charging the battery to re-active it during the period.
(5) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(6) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.

Charger & Adaptor

We provide 2 years conditional warranty for battery chargers and power adaptors

The following damages/issues are not covered under warranty:

(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Damage caused by input voltage beyond the limited range of AC 100V-240V.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.

Light

We provide 1 year conditional warrant for light products.

The following damages/issues are not covered under warranty:

(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual's instructions, or disassemble, repair without authorization of SWIT.

(2) Any damage caused by powering the product with third-party power adaptors.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
