Description
Intercom Control Panel of NDI® EFP System
ET-N80 is the Intercom Control Panel of SWIT NDI® EFP Multi-camera Production System at director’s side. The Intercom Control Panel can bind with 8 camera adaptors (both HD and 4K versions) and supports link connection for more channels, and with only 1x RJ45 cable connected into the NDI® network.
Full Duplex Intercom
The ET-N80 Intercom control panel supports full duplex intercom between director and cameramen. The director can select camera numbers and communicate with each cameraman, and select ANN button to make annoucement to everyone.

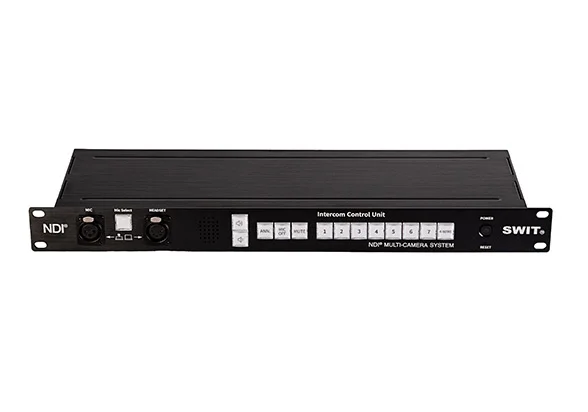

Front Control
The ET-N80 provides a 5-pin headset and a swan-neck microphone, to connect into the front panel, and switchable between the headset and microphone. You can select camera channel, adjust volume, turn off the mic, or mute all the channels, directly by the buttons.
Rear Interfaces
The ET-N80 is connected into NDI® network simply by an RJ45 cable. Set up IP address or rebundle with new camera adaptors by webserver configuration page. The Voice Link port is to serial connect more units, or connect with 3rd party intercom system.
4-wire External Intercom System Connect
If you are using other intercom system like Clear-Com, you can connect this intercom control panel to clearcom through the 4-wire port, and press the link button to take over Clear-Com channels.
|
Headset |
5-pin XLR ×1 |
|
Microphone |
3-pin XLR ×1 |
|
LAN connection |
RJ45 ×1 |
|
Link connection |
RJ45 ×1 (4-wire) |
|
AC Input |
100-240V, 0.5A |
|
DC Input |
11-17V, 1.5A |
|
Power Consumption |
16W |
| Working Temperature | 0-40°C |
| Dimension |
482.6×164.4×44.5mm |
|
Net weight |
1.5kg |
