› 8-ch simultaneous Gold mount fast charging
› DC16.8V, 6A, 100W for ≥160Wh batteries
› DC16.8V, 3A, 50W for <160Wh batteries
› 2× 3.5-inch color LCD info display
› Battery cycle times display
› Large LED charging indicators
› Wall mounting or 19-inch rack install

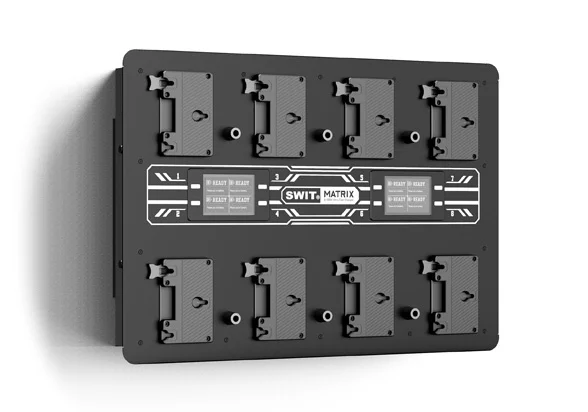

8x100W Ultra Fast Wall Charger
MATRIX-A8 is an 8-ch simultaneous Gold Mount wall charger with 16.8V 6A 100W ultra fast charging speed each channel, which save up to 60% charging time for broadcast TV stations and cine rental house installation.

Charging Time Comparation

Flexible Wall Mounting Plate
MATRIX-A8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket.
You can even install the mounting plate onto storage rack or DIT cart.

Power |
Max 900W |
Input |
AC100V-240V 50/60Hz |
Output |
DC 16.8V, 6A 100Wx8 (SWIT ≥160Wh batteries) DC 16.8V, 3A 50W×8 (Other batteries) |
Applicable battery |
Gold Mount battery |
Dimensions |
630×436×89mm |
Net weight |
Net 10.6kg |
