› 8-ch simultaneous fast charging
› Charge both 14.4V and 28.8V V-mount batteries
› 100W/6A for SWIT 14.4V & ≥160Wh batteries
› 100W/3A for SWIT 28.8V & ≥160Wh batteries
› 50W/3A for other batteries
› 2× 3.5-inch color LCD info display
› Battery cycle times display
› Large LED charging indicators
› Wall mounting or 19-inch rack install

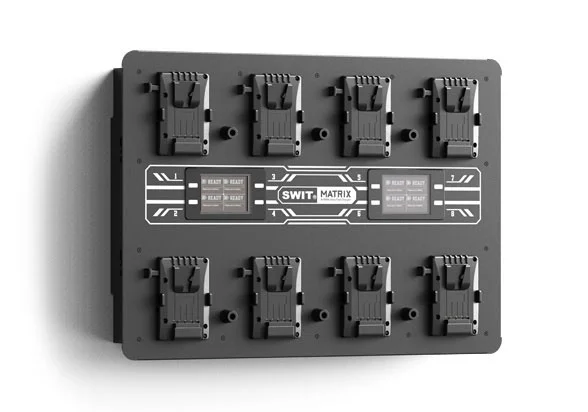

8x100W Ultra Fast Wall Charger
MATRIX-S8 is an 8-ch simultaneous V-mount wall charger with 100W ultra fast charging speed each channel, save up to 60% charging time comparing to normal chargers, supports both 14.4V and 28.8V batteries, for TV stations and rental houses installation.

Charging time comparation

Flexible Wall Mounting Plate
MATRIX-S8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket. You can even install the mounting plate onto storage rack or DIT cart.

Power |
Max 900W |
Input |
AC100V-240V 50/60Hz |
Output |
DC 16.8V, 6A 100Wx8 (SWIT 14.4V & ≥160Wh batteries) DC 33.6V, 3A 100W×8 (SWIT 28.8V & ≥160Wh batteries) DC 16.8V, 3A 50W×8 (Other batteries) |
Applicable battery |
V-mount battery |
Dimensions |
630×436×89mm |
Net weight |
Net 10.6kg |
