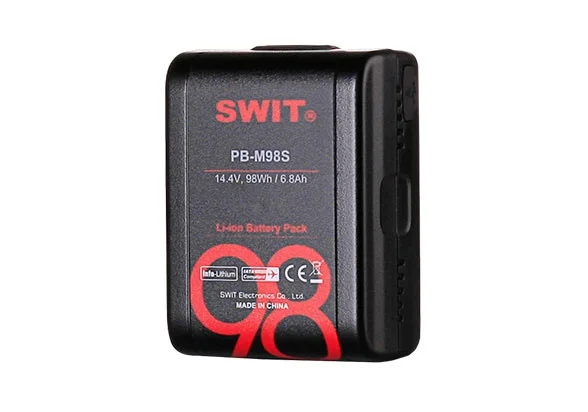

PB-M98S 98Wh Pocket V-mount Battery Pack
PB-M98S 98Wh Pocket V-mount Battery Pack
PB-M98S 98Wh Pocket V-mount Battery Pack
PB-M98S 98Wh Pocket V-mount Battery Pack
PB-M98S 98Wh Pocket V-mount Battery Pack
PB-M98S 98Wh Pocket V-mount Battery Pack
PB-M98S 98Wh Pocket V-mount Battery Pack
PB-M98S 98Wh Pocket V-mount Battery Pack

PB-M98S 98Wh Pocket V-mount Battery Pack

Tiny V-mount battery, Pocket fit
Price
$265.00
$238.00
Save  $27.00
Quantity
Sustainably made
Secure payments
SKU: PB-M98S

› Tiny V-mount battery, Pocket fit

› 98Wh/6.8Ah fly-friendly capacity

› 150W/12A constant high load

› 1x D-tap output & charging input

› 1x USB 5V/2A output

› 5-step LED power indicator

› Power info for both SONY & RED

› Wire-Free internal technic

› Multiple circuit protections

Tiny V-mount battery

Pocket fit size

The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabi- lizers, focus puller monitor, portable LED panel, or small cameras.
PB-M98S Pocket V-mount battery is designed for the above applications!
It’s only a DV battery size, with high capacity cells and still reaches 98Wh, and without any compromise on the DC sockets!

98Wh Fly Friendly

150W/12A constant high load

PB-M98S consists of 8pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.8Ah high capacity. You can take this battery in carry-on luggage to board airplane.
The constant load is as high as 150W, 12A, applicable for high power devices.

Built-in D-tap and USB

The pocket size PB-M98S still has D-tap and USB sockets built-in. The D-tap socket has 100W/8A load, and support charging input by SWIT PC-U130B2 dual D-tap charger.
The USB socket outputs 5V/2A for smart phone fast charging.

5-LED Power Indicator

Low battery warning

PB-M98S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.

3A Fast Charging

PB-M98S can be charged by all standard V-mount chargers and D-tap chargers. Max charging current is 3A.
The following chargers are recommended:
1. S-3822S, Portable 2-ch Simultaneous Charger
Charge 2x PB-M98S: Approx. 3 hours
2. PC-U130B2, Ultra-Portable Dual D-tap head charger
Charge 1x PB-M98S: Approx. 3 hours
Charge 2x PB-M98S: Approx. 5 hours and 15 minutes

Hot-Swap Adaptor

You can use 2x PB-M98S hot-swapable on cameras, by the Hot-swap Adaptor KA-M20S, to get a long time, uninterrupted power, and equivalent to a standard size V-mount battery.

Wire-Free Internal Tech

PB-M98S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

Battery plate

V-mount

Nominal voltage

14.4V

Capacity

98Wh, 6.8Ah

Max output

In total: 150W

Electrodes: 150W, 12A

USB:10W, 5V/2A
D-tap: 100W / 8A

Dimension

100×74×48mm

Charging Temperature 0-40°C
Discharging Temperature

-20°C-50°C(Capacity and Max Load may decrease when operating below 0°)

Net weight

0.51kg

Max charging current

3A
