Description
› Square shape design for Cine-cameras
› 290Wh, 20.1Ah large capacity
› At least 200W, 16A constant load
› 4× D-tap output sockets
› 1× USB 5V/2A power output sockets
› 100W 6A super fast charging
› OLED display accurate remaining run time
› Display power info in both SONY & RED
› Multiple circuit protections

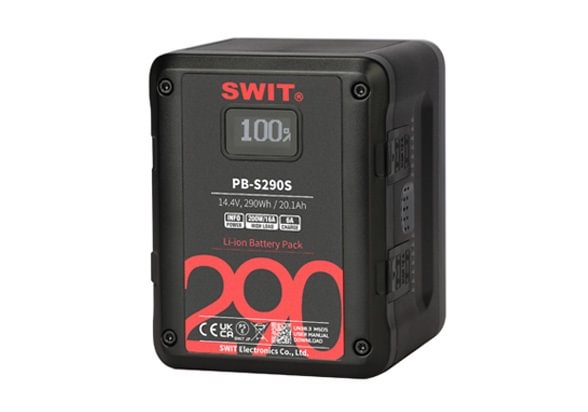

Square shape design for Cine-cameras
PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.
290Wh / 20.1Ah Capacity
Consists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 290Wh / 20.1Ah high capacity. Can run approx 10 hours for normal ENG cameras and approx 3.5 hours for ARRI ALEXA.
High Load for Cine Cameras
At least 200W / 16A load
PB-S290S provides at least 200W/16A high load even at 1% power, to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.
4× D-tap, 1× USB
PB-S290S provides 4x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.
100W 6A Fast Charging
Using SWIT 6A fast charger
PB-S290S supports 6A fast charging by SWIT PC-P461S or S-3812S fast charger, to save more than 50% charging time. The 290Wh PB-S290S battery can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.
Digital Power Info
OLED display accurate remaining run time
The build-in OLED can displays remaining power percentage, remaining working time, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.
|
Model |
PB-S290S |
|
Battery plate |
V-mount |
|
Nominal voltage |
14.4V |
|
Capacity |
290Wh, 20.1Ah |
|
Max output |
In total: 200W |
|
Electrodes: 200W,16A |
|
| USB:10W, 5V/2A | |
| D-tap: 120W / 10A | |
|
Dimension |
121×95×96mm |
|
Charging Temperature |
0-40°C |
|
Discharging Temperature |
-20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
|
Net weight |
1.44kg |
|
Max charging current |
6A |
|
D-TAP socket number |
4 |
|
USB socket number |
1 |
