› 576pcs ultra bright long-life LEDs
› Surface mounted LED technology
› 70° wide beam angle with diffuser
› 3200K-5600K continuously adjustable
› 50W power, 1250Lux @ 1meter
› 10%-100% flick-free dimming
› Super high CRI Ra 96, TLCI 97
› DMX512 controlled color and dimmer
› LCD display color and dimmer value
› Power by V-mount battery or AC-DC adaptor
› 4-leaf metal barn doors
› Strong all-metal housing
› U-shape support and lighting tripod mount

576pcs Surface Mounted LEDs
Area light, soft and glareless

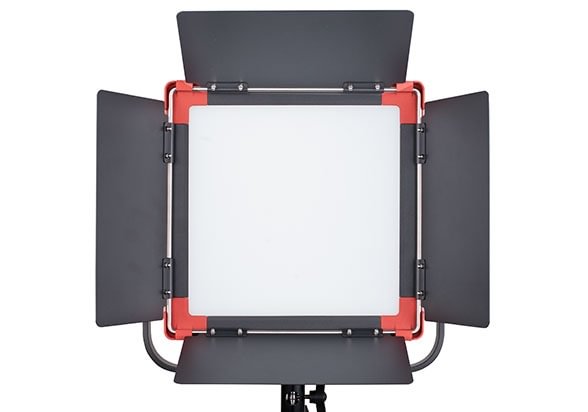

S-2440C is a studio panel LED light, with surface mounted LED technology, includes 576pcs ultra bright LEDs. The build-in diffuser generates an equally spread area light of 70° effective wide beam angle, which is an ideal light source for broadcast studio and field video productions.

Bi-color temperature
3200K-5600K continuously adjustable
S-2440C alternated with 5600K and 3200K LEDs, and the output color temperature can be continuously adjustable between 3200K and 5600K.

1250 Lux @ 1 meter
10-100% flick-free dimming
S-2440C outputs 50W power, feeds 1250Lux luminance at 1 meter distance (center), supports 10% to 100% PWM digital dimming, smoothly and non-flickering.

High Color Reveal Ability
CRI Ra 96; TLCI 97
CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100. The normal LED light has 80-85 CRI or TLCI, while S-2440C offers the super high CRI at 96 and TLCI at 97, and will not lose the object original colors.

DMX512 Control
Dimmer and Color temperature
S-2440C adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and color temperature by DMX controller.
The dimmer and color temperature occupy 1 DMX address respectively.

LCD screen display
Dimmer / color temperature value, DMX address
The rear LCD screen can display the current dimmer percentage, color temperature value, and supports touch control to set DMX address.

DC 12-17V Power Supply
By V-mount battery / AC-DC adaptor
S-2440C supports 12-17V 4-pin XLR DC input, and equipped with a battery plate to power by V-mount battery, or powered by AC-DC adaptor.
The AC-DC adaptor is supplied with a V-wedge, so that you can fix the adaptor onto V-mount plate of the light.

4-leaf Metal Barn Door
Easy to disassemble
S-2440C has all-metal housing, and equipped with a 4-leaf metal barn door, snap on install, and easy to disassemble.

U-shape Bracket
Dual security rope
S-2440C supplied with a U-shape bracket for lighting tripod install or celling hanging install. The product package provides 2x steel security rope for both light body and U-shape bracket.
