Description
› Portable Optical Fiber to 3G/HD/SD-SDI Converter
› 1 Fiber input, 2 SDI output
› Single mode Optical Fiber, LC connector
› Max 20km reliable transmission
› Support hot swap of the optical module
› Power / SDI input status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing
Portable Mini Converter
Optical Fiber to SDI

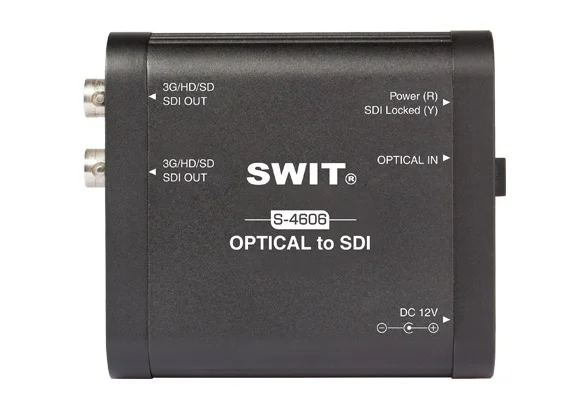

S-4606 is a mini converter for LC single mode Optical Fiber to SDI conversion, widely used on transmitting SDI in a long distance.
Input and Output
S-4606 offers:
1×LC Optical Fiber input
2× 3G/HD/SD-SDI output
Encoder and Decoder
Working together with S-4605
The S-4606 works as decoder to convert Optical fiber back to SDI, and you can use SWIT S-4605 (SDI to Optical fiber encoder) together, to transmit SDI via fiber up to 20km reliable distance.
Status Indicators
Power / SDI output
S-4606 provides 2 LED indictors, to check if the power is connected, and if the output SDI is recognized.
Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4606 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.
Installation
S-4606 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC cables and optical fibers.
Input
|
LC ×1 |
Optical fiber input |
Output
|
BNC ×2 |
Converted 3G/HD/SD-SDI output |
Video Format
|
SDI |
1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
|
Optical Fiber |
SMPTE 297-2006 |
| 1310nm wavelength |
General
|
Power |
≤3W |
|
Working Voltage |
DC 6-18V |
|
Working Environment |
Temperature: 0°C-+70°C, Humidity:10%-90% |
|
Dimensions |
98×84×29 mm |
|
Net weight |
Net 220g; With package 0.5kg |
