› Portable Optical Fiber Converter
› Bi-directional Optical Fiber to SDI and SDI to Optical Fiber
› Single mode Optical Fiber, LC connector
› Max 20km reliable transmission
› Support hot swap of the optical module
› Power / SDI input status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing

Portable Mini Converter
Bi-directional SDI/Optical

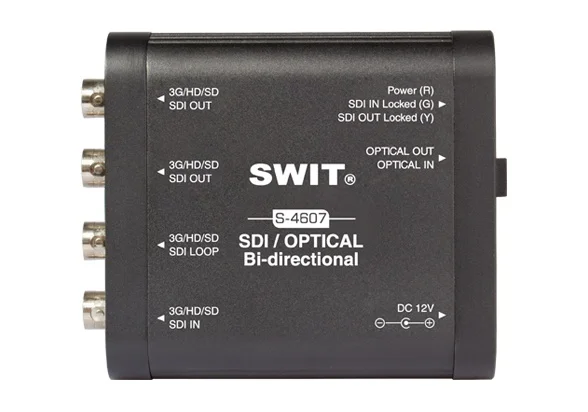

With S-4607 mini converter, you can convert SDI to LC single mode Optical Fiber, and convert Optical Fiber to SDI simultaneously. It’s widely used on transmitting SDI in a long distance and bi-directionally.

Input and Output
S-4607 SDI to Optical channel:
1× 3G/HD/SD-SDI input
1× 3G/HD/SD-SDI loop output (Reclocked)
1× LC Optical Fiber output
S-4607 Optical to SDI channel:
1× LC Optical Fiber input
2× 3G/HD/SD-SDI output

Encoder and Decoder
Using 2× S-4607
You can use 2× S-4607 to transmit SDI via Optical fiber, and bi-directionally. The reliable transmission distance is 20km.

Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Status Indicators
Power / SDI output
S-4607 provides 3 LED indictors, to check if the power is connected, and if the SDI input / Output is recognized.

Heavy Duty Housing
The S-4607 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.

Installation
S-4607 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC cables and optical fibers.
Input
BNC×1 |
3G/HD/SD-SDI input |
LC ×1 |
Optical fiber input |
Output
BNC ×1 |
3G/HD/SD-SDI loop output |
LC ×1 |
Converted Optical fiber output |
BNC×2 |
Converted 3G/HD/SD-SDI output |
Video Format
SDI |
1080p (60 / 59.94 / 50) |
1080i (60 / 59.94 / 50) | |
1080p (30 / 29.97 / 25 / 24 / 23.98) | |
1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
720p (60 / 59.94 / 50) | |
480i (59.94) | |
576i (50) | |
Optical Fiber |
SMPTE 297-2006 |
Input: 1260-1580nm wavelength | |
Output: 1310nm wavelength |
General
Power |
≤4W |
Working Voltage |
DC 6-18V |
Working Environment |
Temperature: 0°C-+70°C, Humidity:10%-90% |
Dimensions |
98×84×29 mm |
Net weight |
Net 250g; With package 0.55kg |
